Rof DTS usoro 3G analọg fotoelectric nnata RF n'elu eriri njikọ ROF njikọ

Nkọwa dị mkpirikpi:

Rof-DTS-3G usoro analọg fotoelectric nnata nwere a sara mbara gbalaga si 300Hz ka 3GHz na flat photoelectric nzaghachi àgwà, na-integrates dijitalụ nkwurịta okwu ọrụ, akpaka uru akara, wdg, nke nwere ike ọ bụghị nanị na-ebu dijitalụ nkwurịta okwu na transmitter, kamakwa. na-akwụ ụgwọ na-akpaghị aka maka mgbanwe mfu njikọ anya na oke nkwụghachi ụgwọ ziri ezi. Ọ bụ ihe nnata fotoelectric na-arụ ọrụ dị ukwuu nke na-efu ọnụ. A na-akwado onye nata ya site na batrị lithium nke nwere ike ịchaji n'ime, nke na-ebelata ụda ụda nke ike dị n'èzí ma na-eme ka ojiji nke oghere dị n'èzí dị mfe. A na-ejikarị ya na nchọpụta mgbama pulse optical, ultra-wideband analọgụ mgbama ngwa anya na mpaghara sistemu ndị ọzọ.


Nkọwa ngwaahịa

Rofea Optoelectronics na-enye ngwa anya na photonics Electro-optic modulators ngwaahịa

Mkpado ngwaahịa



Njirimara ngwaahịa

Analọgụ fotoelectric nnata Ogologo ogologo ọrụ: 1310nm
bandwidth na-arụ ọrụ: 300Hz (Ugboro ole na ole) ~ 3GHz
(Anyị nwekwara ụdị 10KHz ~ 6GHz)
Obere mkpọtụ, uru dị elu
Nkwụghachi ụgwọ akpaaka maka mfu ntinye njikọ anya
Site na nzikọrịta ozi dijitalụ, ịchaji, njikwa PC na ọrụ ndị ọzọ
Nweta 800 ruo 850 V/W

Ngwa

Nchọpụta mgbaàmà pulse anya
Broadband analọgụ ngwa anya mgbama nnabata

parameters

Oke Akara Nkeji Min Ụdị Oke kwuo
Ogologo ogologo ọrụ ịme emume

λ1

nm

1100

1310

1650

nzikọrịta ozi

2

nm

1490/1550

Otu na-anata, otu nyefee

- 3dB bandwit

BW

Hz

300

3G

Ịdị mma n'ime-band

fL

dB

±1

±1.5

Ike ngwa anya ntinye kacha nta

Pmin

mW

1

l=1310nm

Ike ngwa anya ntinye kacha

Pmax

mW

10

l=1310nm

Njikọ nweta nkwụghachi ụgwọ ziri ezi

R

dB

±0.1

l=1310nm

Uru ntughari

G

V/W

800

850

l=1310nm

Mgbanwe voltaji kacha elu

Mkpu

Vpp

2

50Ω

Ebili mmiri kwụ ọtọ

S22

dB

-10

Ịchaji voltaji

P

V

DC 5

Ịchaji ugbu a

I

A

2

Njikọ ntinye

FC / APC

Njikọ mmepụta

SMA(f)

Nkwukọrịta na chaja interface

Ụdị C

Mmebi nke mmepụta

Z

Ω

50Ω

Ụdị njikọ mmepụta

ACnjikọ

Akụkụ (L× W × H)

mm

100×45×80

Oke Ọnọdụ

Oke Akara Nkeji Min Ụdị Oke
Tinye oke ike anya

Ntụtụ

mW

1

10

Ọnọdụ okpomọkụ na-arụ ọrụ

N'elu

ºC

5

50

Ọnọdụ nchekwa

Tst

ºC

-40

85

iru mmiri

RH

%

10

90

Iguzogide nnyonye anya ubi

E

kV/m

20



Usoro njirimara

Kọmputa interface dị elu

(Ọmụmaatụ)

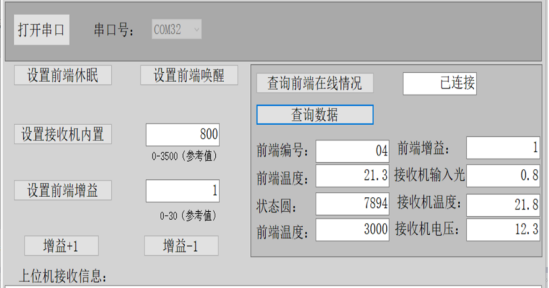

* Enwere ike ịhazi kọmpụta dị elu dị ka ihe ndị ahịa chọrọ (nwere ike ime interface Bekee)



Kọmputa interface dị elu

(Ọmụmaatụ)

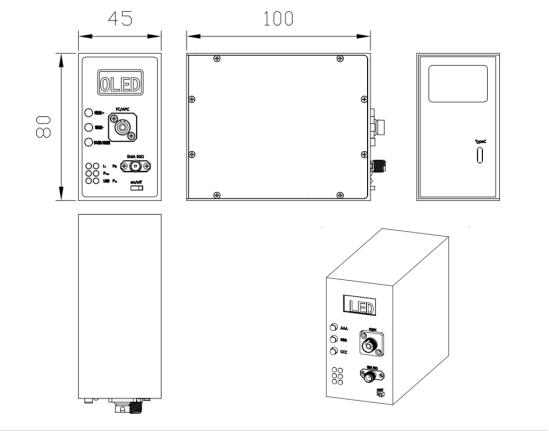

Eserese atụmatụ nke nhazi nnata







1: LED ngosi. Ngosipụta ozi A na-egosipụta ozi akọwapụtara na ihuenyo gara aga.

2: bọtịnụ mmezi ọrụ.

Usoro bụ uru +, uru -, ụra/eteta

Bọtịnụ ụra/teta: zipu ntuziaka ka ịkpọte ma hie ụra onye nnata, mgbe onye nnata na-ehi ụra naanị E-XX na-ehi ụra.

3: Ngosipụta ọrụ.

IA: Ihe ngosi dị ugbu a. Mgbe agbanyere, ọkụ ndụ ndụ na-egosi na nnata na-arụ ọrụ nke ọma.

Ịkọ: ọkụ ịdọ aka ná ntị ike anya dị ala, na-anata ike na-erughị 1mW ọkụ na-acha ọbara ọbara.

USB: USB egosi. Ihe ngosi a na-agbanye mgbe etinyere USB.

PS: egosi ike anya mgbe niile nke na-egbuke egbuke mgbe ike na-agbanwe.

Pin: Ntinye ike anya bụ ihe nkịtị, na ike enwetara karịrị 1mW mgbe ọkụ na-acha uhie uhie na-agbanye.

4: Ngwa anya interface flange: FC/APC

5: RF interface: SMA

6: Mgbanwe ọkụ.

7: Nkwukọrịta na chaja interface: Ụdị C



ịtụ ozi

* biko kpọtụrụ onye na-ere anyị ma ọ bụrụ na ị nwere ihe pụrụ iche chọrọ.
