Rof Electro-optic modulator 1550nm LiNbO3 Intensity Modulator 50G

Nkọwa dị mkpirikpi:

A na-eji modulator ike nke LiNbO3 eme ihe n'ọtụtụ ebe na sistemụ nkwurịta okwu ngwa anya dị elu, nyocha laser na sistemụ ROF n'ihi arụmọrụ elektrọn nke ọma. Usoro R-AM dabere na MZ push-pull structure na X-cut design, nwere njiri anụ ahụ na kemịkalụ kwụsiri ike, nke enwere ike itinye ma na nnwale ụlọ nyocha na sistemụ mmepụta ihe.

Zitere anyị email Budata

Nkọwa ngwaahịa

Rofea Optoelectronics na-enye ngwa anya na photonics Electro-optic modulators ngwaahịa

Mkpado ngwaahịa

Njirimara

* Ọnwụ ntinye dị ala
* Bandwit dị elu
* Obere voltaji ọkara ebili mmiri
* Nhọrọ nhazi

Modulator Electro-optic modulator Electro-optical modulator LiNbO3 ike modulator MZM Modulator Mach-Zehnder Modulator LiNbO3 modulator Lithium niobate modulator

Ngwa

Sistemụ ROF
⚫ Nkesa igodo Quantum
Sistemụ sensọ laser
⚫ Mgbanwe nke akụkụ-band

Rof-AM usoro	Rof-AM-07	Rof-AM-08	Rof-AM-10	Rof-AM-13	Rof-AM-15
Ogologo ogologo ọrụ	780nm	850nm	1064nm	1310 nm	1550nm
Bandwit	10GHz	10GHz	10/20GHz	2.5GHz	50GHz	10GHz	20GHz	40GHz
Mfu ntinye	5dB	5dB	.5dB	.5dB	.4dB
Oke mkpochapu @DC	＞20dB	＞20dB	＞20dB	＞20dB	＞20dB
V_Π@RF (1 kHz)	3V	3V	4V	<3.5V	.6V	<5V
V_Π@Bias	.3.5V	.3.5V	5V	<5V	<8V	<7V

Ozi ịtụ

Rof

XXG

Ụdị: AM--- Intensity Modulator

Ogologo ogologo: 07--780nm
08---850nm

10---1060nm

13---1310nm

15---1550nm

Bandwit: 10GHz

20GHz

40GHz

50GHz

Nyochaa PD:PD--- Ya na PD
00 --- Enweghị PD

Ụdị Fiber na-apụta: PP---PM/PM

Njikọ ngwa anya: FA---FC/APC

FP---FC/PC

SP--- ahaziri

R-AM-15-50G

Wavalength 1550nm 50GHz modulator ike

Oke				Akara		Min	Ụdị	Oke	Nkeji
Ngwa anya
Ogologo ogologo ọrụ				l		1530	1550	1565	nm
Mfu ntinye				IL			4	5	dB
Ọnwụ nlọghachi anya				ORL				-45	dB
Gbanwee oke mkpochapụ @DC				ER@DC		20	23	45	dB
Oke mkpochapụ dị egwu				DER			13		dB
eriri anya	Ntinyeọdụ ụgbọ mmiri					Panda PM Fujikura SM
	ọdụ ụgbọ mmiri mmepụta					Panda PM Fujikura SM
Ngwa anya eriri interface						FC/PC, FC/APC Ma ọ bụ onye ọrụ ịkọwapụta
Igwe ọkụ eletrik
bandwidth na-arụ ọrụ(-3dB)					S₂₁	35	40		GHz
Ọkara-efegharị voltaji Vpi		RF			@50KHz		5	6	V
		Ajọrọ njọ			@Bias		7	8	V
Ọnwụ nlọghachi eletrik					S₁₁		-12	-10	dB
Ntinye mgbochi			RF		Z_RF	50			W
			Ajọrọ njọ		Z_BIAS	1M			W
Eletriki interface						V(f)

Oke Ọnọdụ

Oke	Akara	Nkeji	Min	Ụdị	Oke
Ntinye ike anya	P_{na, Max}	dBm			20
Tinye ike RF		dBm			28
voltaji na-adịghị mma	Vbias	V	-15		15
Ọnọdụ okpomọkụ na-arụ ọrụ	N'elu	℃	-10		60
Ọnọdụ nchekwa	Tst	℃	-40		85
iru mmiri	RH	%	5		90

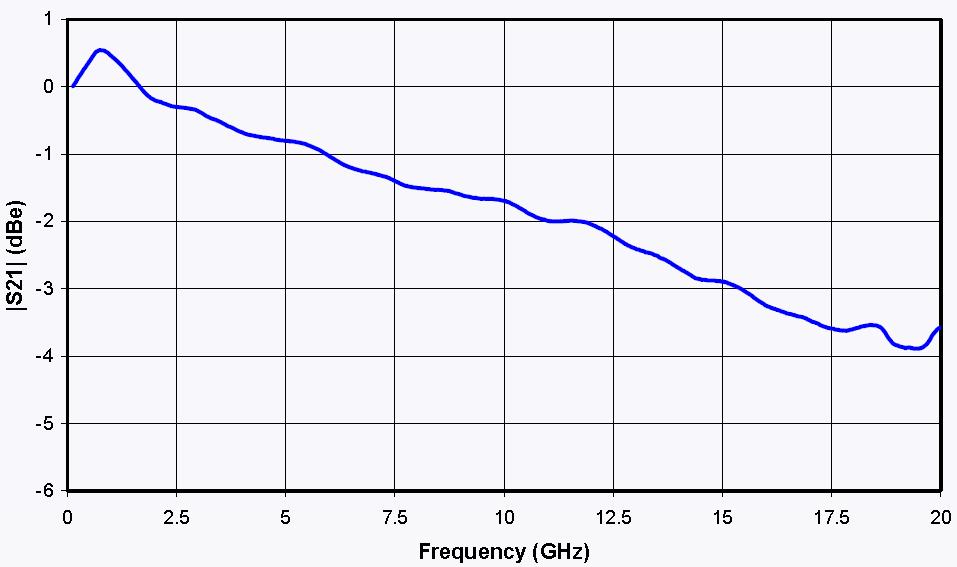

S21 akụkụ

& S11 akụkụ

S21&s11 akụkụ

Eserese igwe

Ọdụ ụgbọ mmiri	Akara	Rịba ama
N'ime	ọdụ ụgbọ mmiri ntinye anya	Fiber PM (125μm/250μm)
pụọ	ọdụ ụgbọ mmiri mmepụta anya	PM na SMF nhọrọ
RF	RF ntinye ọdụ ụgbọ mmiri	SMA(f)
Ajọrọ njọ	ọdụ ụgbọ mmiri na-achị isi	1,2 Agbaghara, 34-N/C
